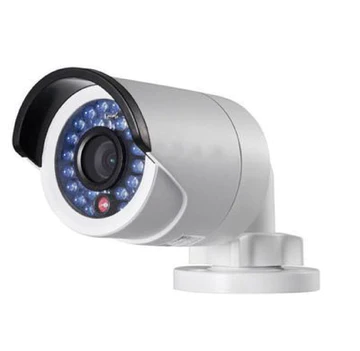

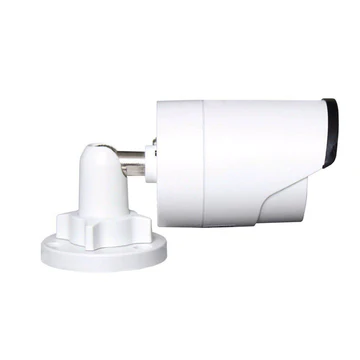

Hikvision DS-2CD206WFWD-I 6MP IP Bullet Camera

6,878.00 8,116.04incl. GST

About this item

  • 1/2.9″ Progressive Scan CMOS
  • 3072 × 2048@20 fps
  • 2.8/4/6/8 mm fixed lens
  • Color: 0.01 lux @(F1.2, AGC ON), 0.028
  • lux @(F2.0, AGC ON), 0 lux with IR
  • H.265+, H.265, H.264+, H.264
  • 2 Behavior analyses
  • 120dB WDR
  • BLC/3D DNR/ROI
  • IP67
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

Out of stock

Category:
Wishlist

Camera Specifications

  • Image Sensor : 1/2.9″ Progressive Scan CMOS
  • Min. Illumination : Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
  • Shutter Speed : 1/3 s to 1/100,000 s
  • Slow Shutter : Yes
  • Auto-Iris : No
  • Day & Night : IR Cut Filter
  • Digital Noise Reduction : 3D DNR
  • WDR : 120dB
  • 3-Axis Adjustment : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Focal Length : 2.8/4/6/8 mm
  • Aperture : F2.0
  • Focus : Auto
  • FOV : 2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°, 4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°, 6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°, 8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48°
  • Lens Mount : M12

IR

  • IR Range : Up to 30 m
  • Wavelength : 850nm

Compression Standard

  • Video Compression : Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
  • H.264 Type : Main Profile/High Profile
  • H.264+ : Main stream supports
  • H.265 Type : Main Profile
  • H.265+ : Main stream supports
  • Video Bit Rate : 32 Kbps to 16 Mbps
  • Smart Feature-set
  • Behavior Analysis : Line crossing detection, intrusion detection
  • Face Detection : Yes
  • Region of Interest Support : 1 fixed region for main stream and sub-stream


  • Max. Resolution : 3072 × 2048
  • Main Stream : 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 ×720), 60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 ×720)
  • Sub-Stream : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream : 50Hz: 25fps(1280 × 720, 640 × 360, 352 × 288), 60Hz: 30fps(1280 × 720, 640 × 360, 352 × 240)
  • Image Enhancement : BLC/3D DNR
  • Image Settings : Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Target Cropping : No
  • Day/Night Switch : Day/Night/Auto/Schedule

Network

  • Network Storage : Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Alarm Trigger : Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • General Function : One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Firmware Version : V5.5.3
  • API : ONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live View : Up to 6 channels
  • User/Host : Up to 32 users
  • 3 levels: Administrator, Operator and User
  • Client : iVMS-4200, Hik-Connect, iVMS-5200
  • Web Browser : IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Interface
  • Video Output : No
  • Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port
  • On-board Storage : Built-in microSD/SDHC/SDXC slot, up to 128 GB
  • SVC : H.264 and H.265 encoding support
  • Reset Button : Yes

General

  • Operating Conditions : -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply : 12 VDC ± 25%, Φ 5.5mm coaxial power plug, PoE(802.3af, class 3)
  • Power Consumption and Current : 12 VDC, 0.4 A, max. 6W, PoE: (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7.5W
  • Protection Level : IP67
  • Material : Metal
  • Dimensions : Camera: Φ 70 mm × 155 mm (Φ 2.8″ × 6.1″), Package: 216 × 121 × 118 mm (8.5″ × 4.8″ × 4.7″)
  • Weight : Camera: approx. 410 g (0.9 lb.)

Brand

HIKVISION
