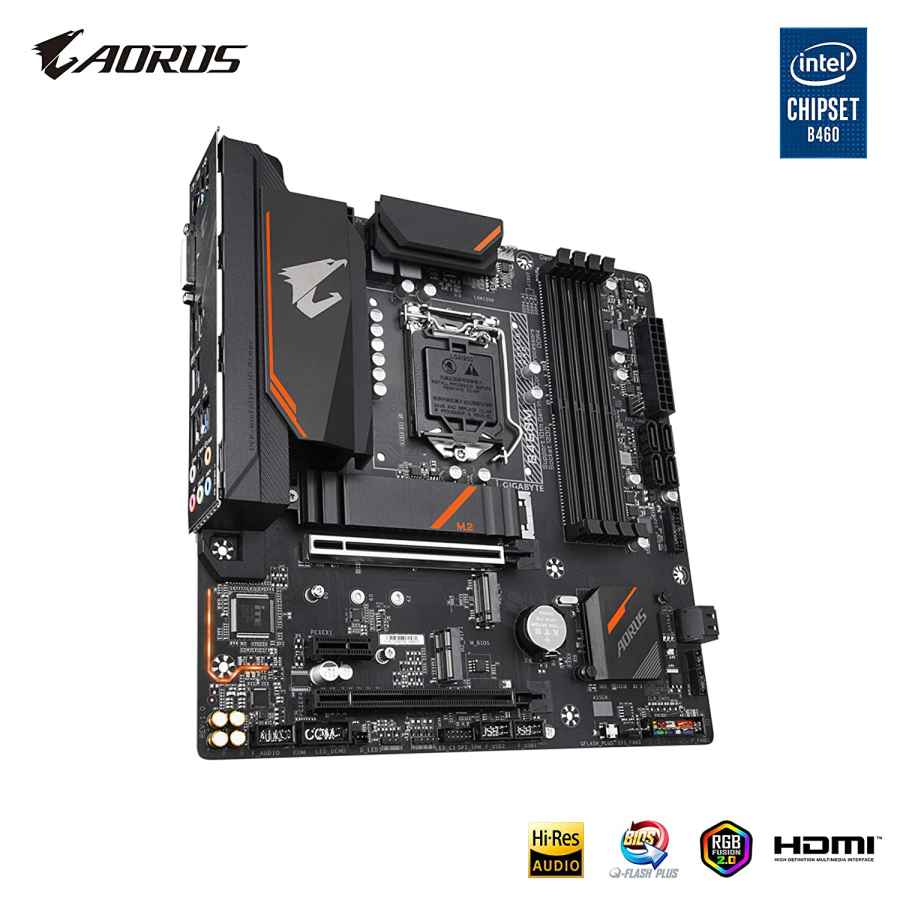

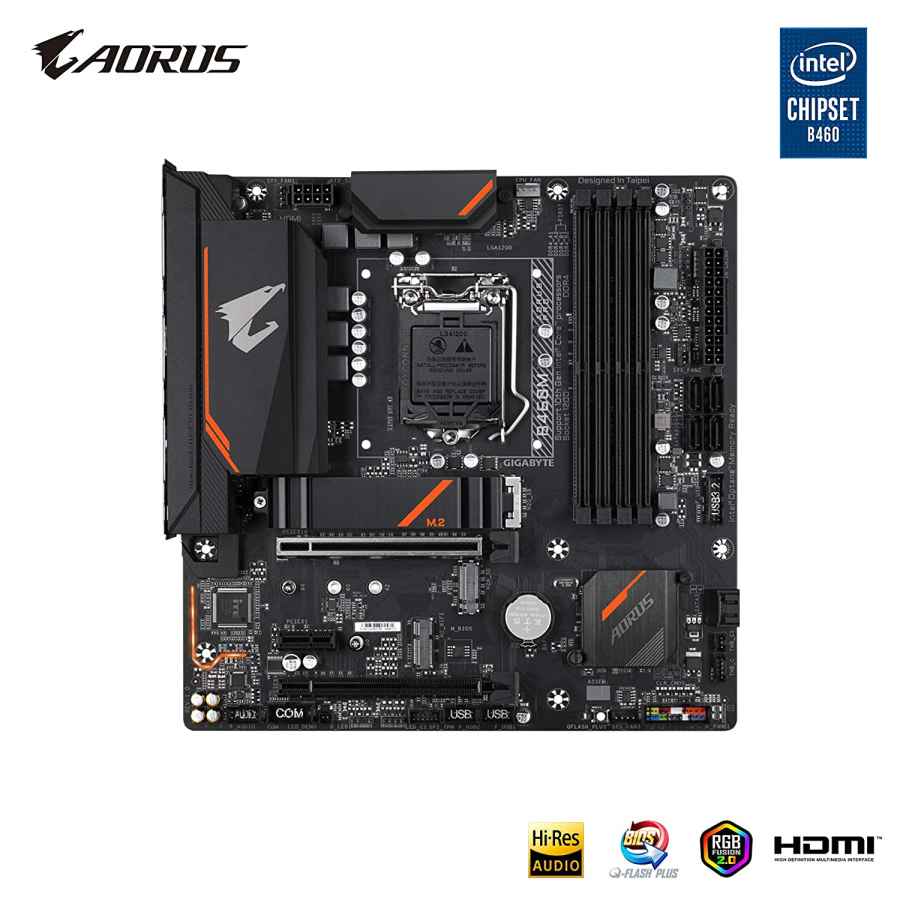

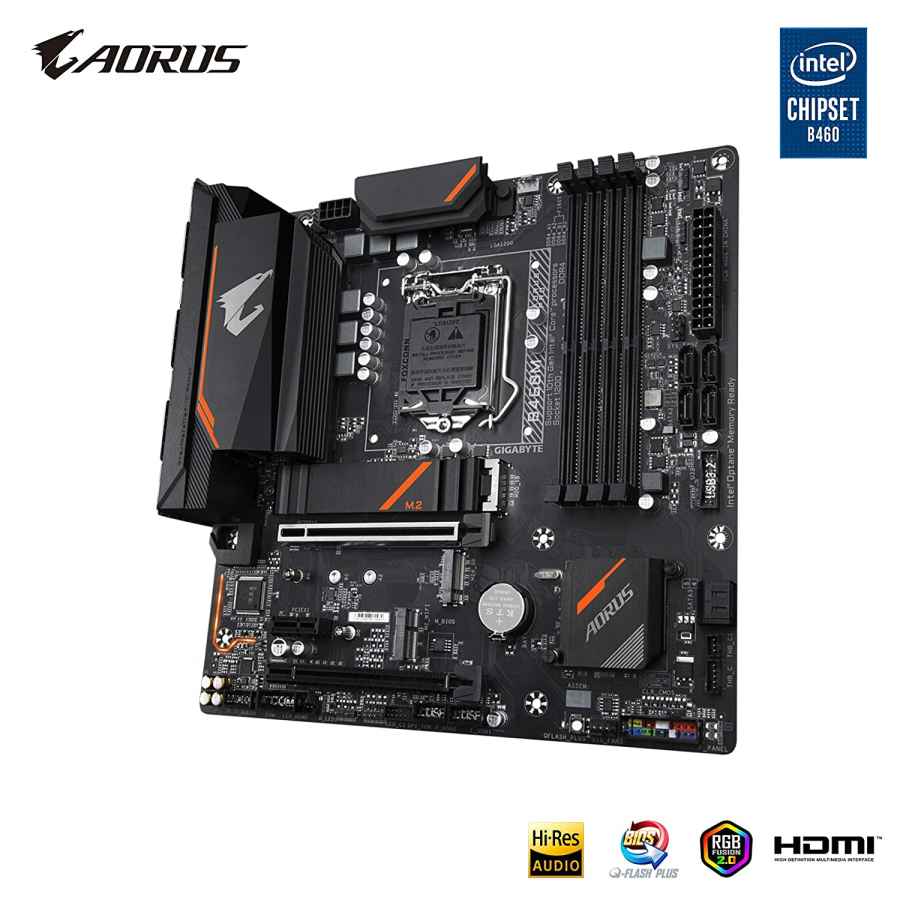

Gigabyte B460M Aorus Pro Motherboard

9,727.00

Features

Intel® B460 AORUS Motherboard with RGB Fusion 2.0 with Digital LEDs, Intel® GbE LAN with cFosSpeed, Advanced Thermal Design with Enlarged Heatsink, USB 3.2 Gen1 Type-C , Dual M.2 Slots, M.2 E-key Slot for PCIe WIFI Module Upgradable

  • Supports 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Advanced Thermal Design with Enlarged Heatsink
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guard
  • Blazing Fast Intel® GbE LAN with cFosSpeed
  • Intel® USB 3.2 Gen1 Type-C™ Support
  • M.2 E-key Slot for PCIe WIFI Module Upgradable
  • AMP-UP Audio with ALC1200 with Nichicon MW Audio Capacitors
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips

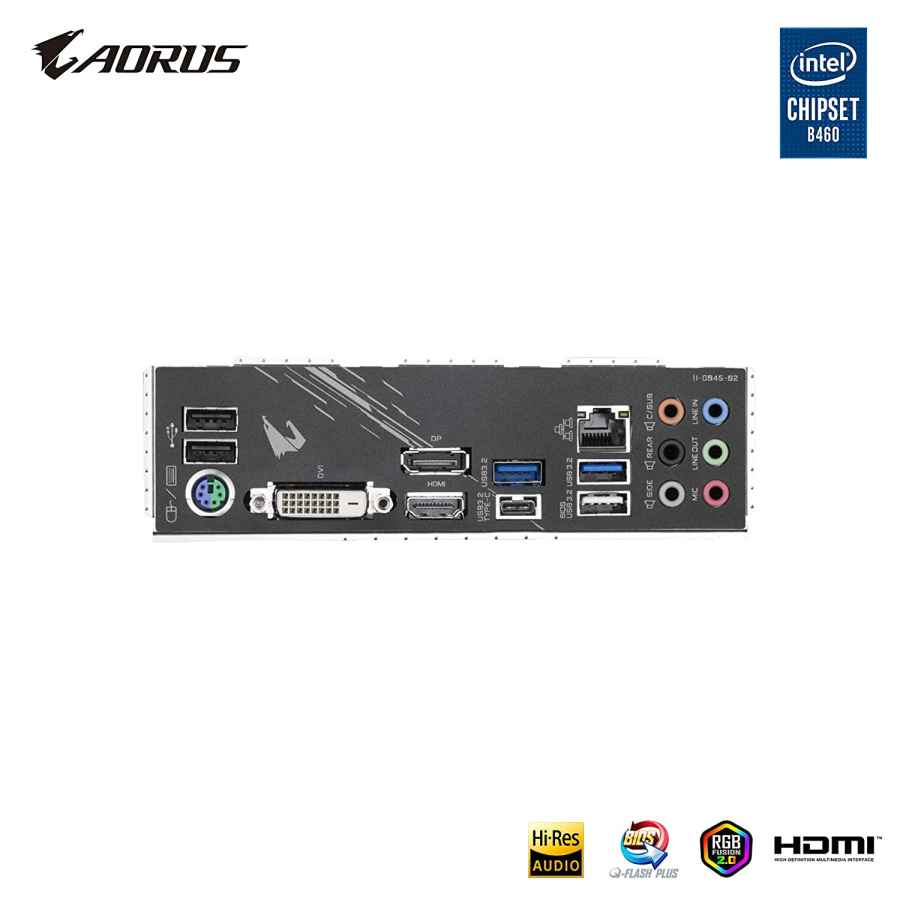

  • Pre-installed IO Shield for Easy and Quick Installation
  • Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card
  • Intel® Optane™ Memory Ready

Availability: 1 in stock

Category:

Specifications

CPU
  • Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  • L3 cache varies with CPU

(Please refer to “CPU Support List” for more information.)

Chipset Intel® B460 Express Chipset
Memory
  • Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  • Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules

(Please refer to “Memory Support List” for more information.)

Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

  • 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.

Support for up to 3 displays at the same time
Maximum shared memory of 512 MB

Audio
  • Realtek® ALC1200 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
LAN Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  • 1 x PCI Express x1 slot
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  • 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Brand

GIGABYTE
