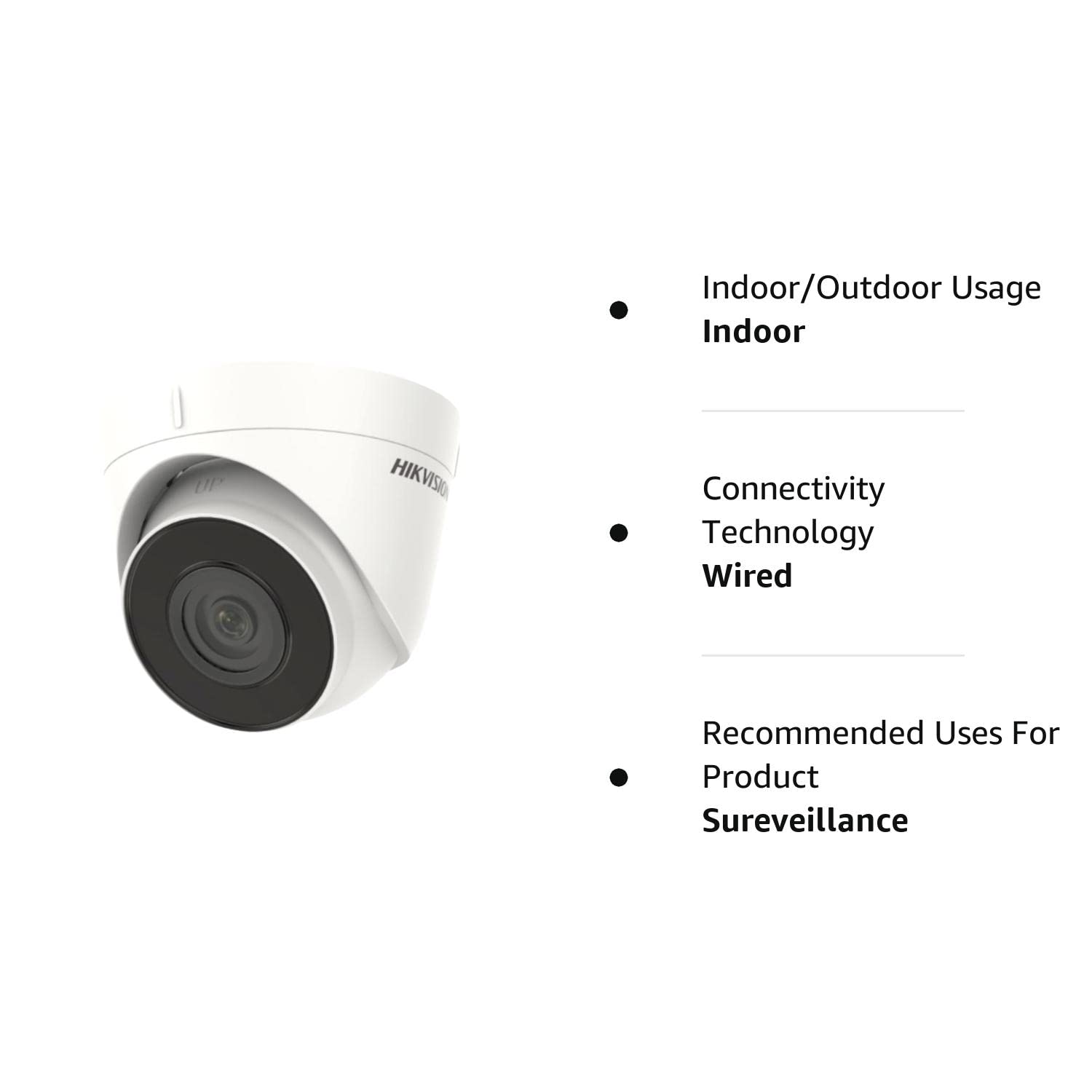

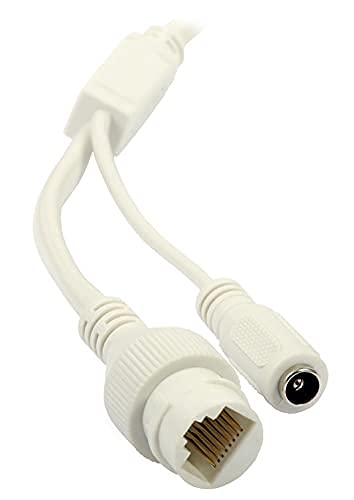

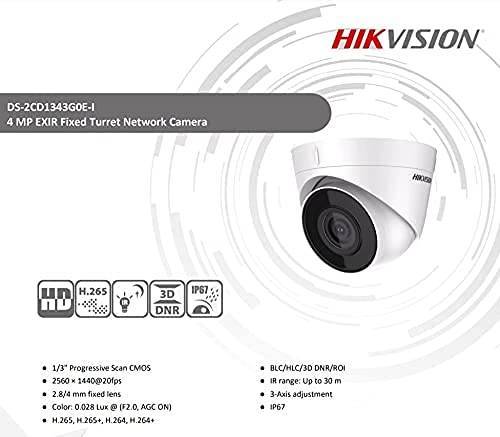

Hikvision 4 MP IP Network Dome CCTV Camera DS-2CD1343G0E-I 4MM 4MP + USEWELL RJ45 Connector (White)

Camera Specifications

• Image Sensor : 1/3″ Progressive Scan CMOS
• Min. Illumination : Color: 0.028 Lux @ (F2.0, AGC ON)
• Shutter Speed : 1/3 s to 1/100,000 s
• Slow Shutter : Yes
• Day & Night : IR Cut Filter
• WDR : DWDR
• Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type : Fixed lens, 2.8/4 mm
• Aperture : F2.0
• FOV : 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°, 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
• Lens Mount : M12

Illuminator

• IR Range : Up to 30 m
• Wavelength : 850 nm

Video

• Max. Resolution : 2560 × 1440
• Main Stream : 50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720), 60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub-Stream : 50Hz: 20fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
• Video Compression : Main stream: H.265+/H.264+/H.265/H.264, Sub-stream: H.265/H.264/MJPEG
• H.264 Type : Baseline Profile/Main Profile
• H.265 Type : Main Profile
• Video Bit Rate : 32 Kbps to 8 Mbps
• Smart Feature-Set
• Basic Event : Motion detection, video tampering alarm, exception (illegal login)
• Linkage Method : Upload to FTP, notify surveillance center, send email
• Region of Interest : 1 fixed region for main stream


• Image Enhancement : BLC, HLC, 3D DNR
• Image Setting : Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
• Day/Night Switch : Day/Night/Auto/Schedule
• S/N Ratio : > 50dB

Network

• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• API : ONVIF (PROFILE S), ISAPI, SDK
• Security : Password protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)
• Simultaneous Live View : Up to 6 channels
• User/Host : Up to 32 users, 3 levels: administrator, operator and user
• Client : iVMS-4200, Hik-Central, Hik-Connect
• Web Browser : IE8+, Chrome 31.0-44, Firefox30.0-51, Safari8.0+

Interface

• Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port
