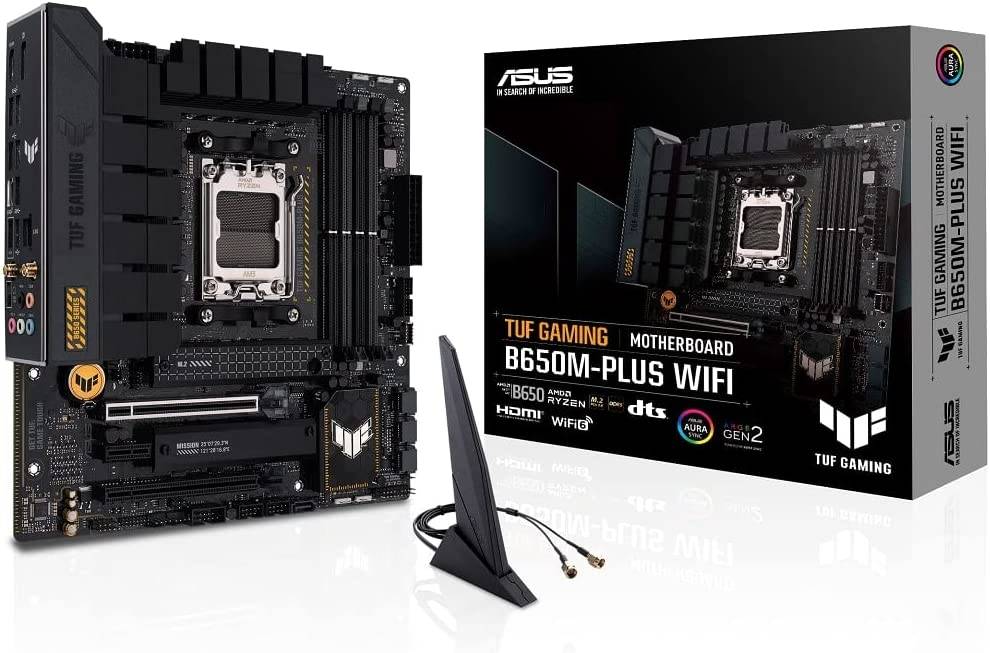

Asus TUF Gaming B650M Plus WIFI Motherboard

Original price was: ₹26,000.00.Current price is: ₹18,819.00. 22,206.42incl. GST

About this item

  • AMD AM5 socket: Ready for AMD Ryzen 7000 Series desktop processors
  • Enhanced power solution: 12+2 teamed power stages, 8+4 ProCool sockets, alloy chokes and durable capacitors for stable power delivery
  • Next-gen connectivity: M.2 PCIe 5.0, USB 3.2 Gen2x2 Type-C, front USB 3.2 Gen 1 Type-C, USB4 support
  • Made for online Gaming: Realtek 2.5 Gb Ethernet and TUF LANGuard
  • Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
  • Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 2+ utility in Armoury Crate
  • Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header

Out of stock

Category:
Wishlist

Specifications:

CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
Chipset AMD B650
Memory 4 x DIMM, Max. 128GB, DDR5

6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO™)

OptiMem II

“* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function *

Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

Graphics 1 x DisplayPort

** 1 x HDMI® port*

** * Graphics specifications may vary between CPU types.

** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

***Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors

* 1 x PCIe 4.0 x16 slot

AMD B650 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x1 slot

Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD B650 Chipset

4 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet 1 x Realtek 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth® “Wi-Fi 6

2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2”

USB Rear USB (Total 8 ports)

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1 x USB 3.2 Gen 1 port (1 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio “Realtek 7.1 Surround Sound High Definition Audio CODEC

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback”

Audio Features

– Audio Shielding

– Premium audio capacitors

Dedicated audio PCB layers

Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1 x USB 3.2 Gen 1 port (1 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI®port

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™  button

Internal I/O Connectors Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB Gen 1 connector (supports USB Type-C® )

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header

Note *** Features, Price, Specifications are subject to change without notice.
