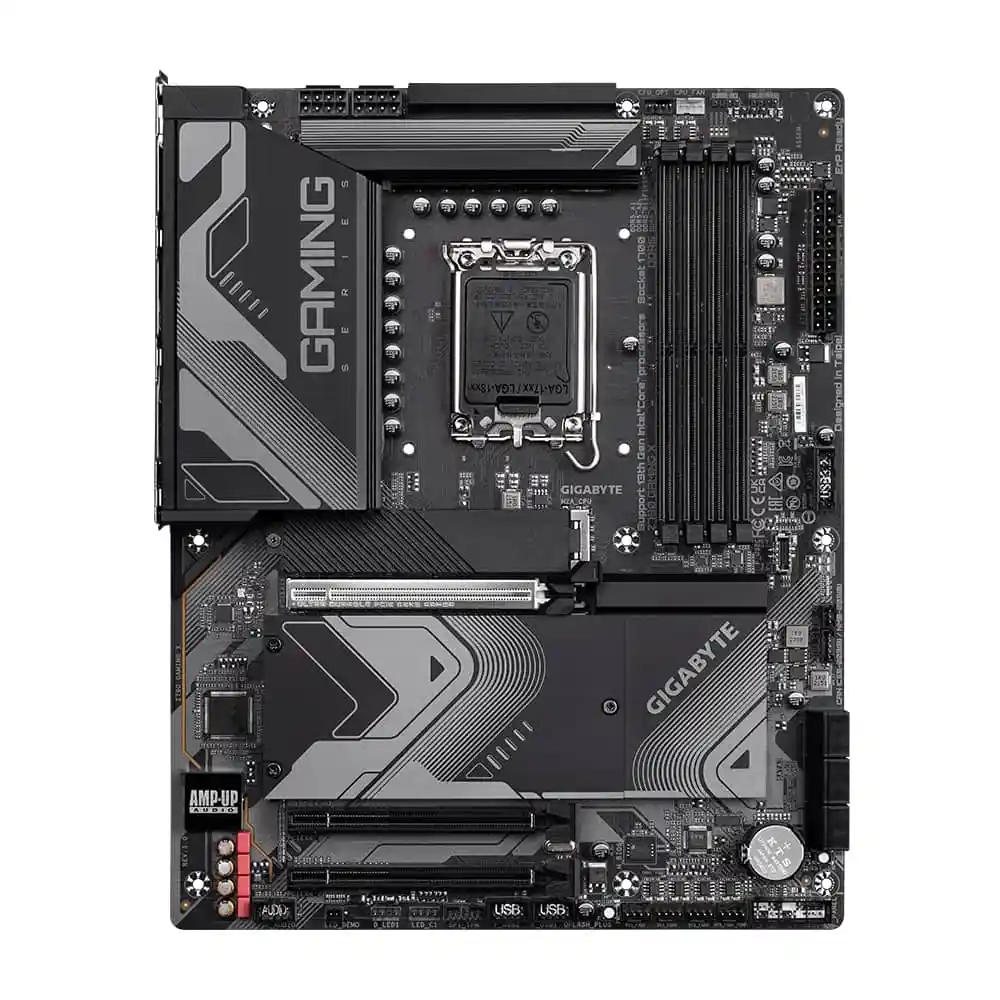

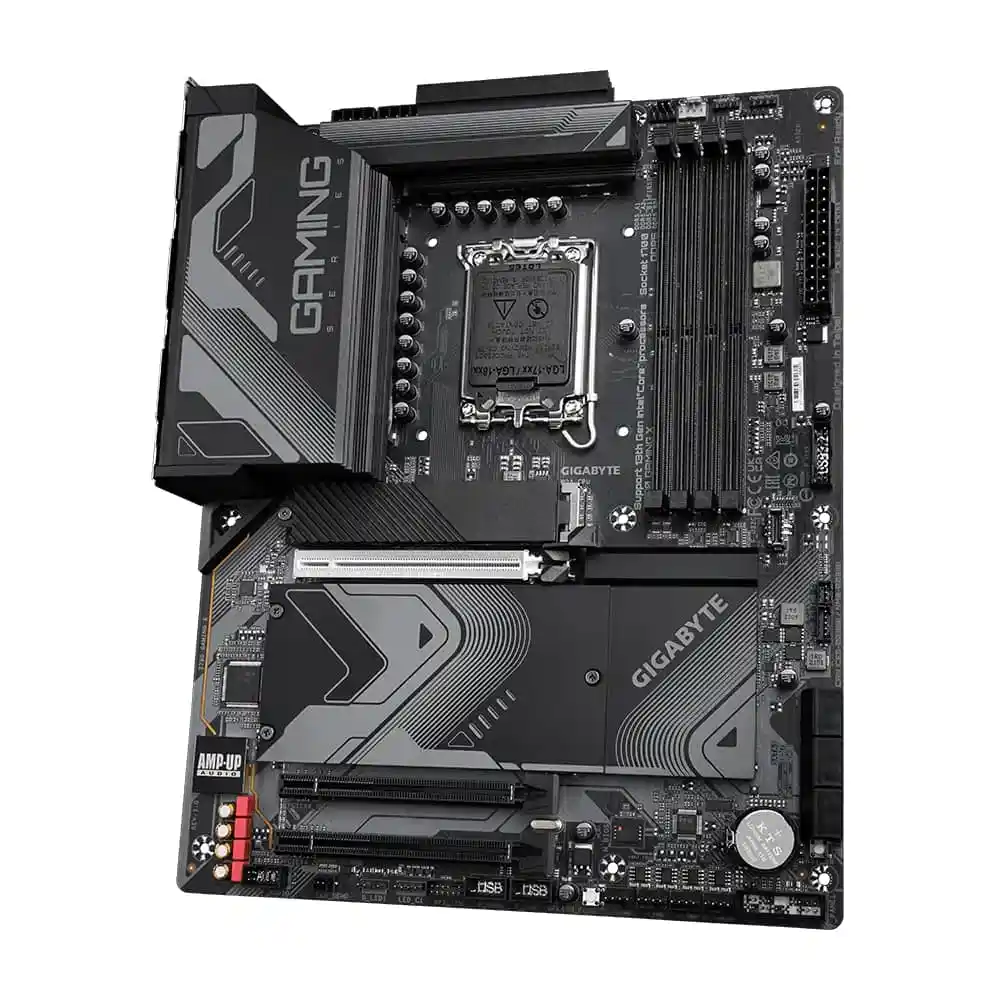

GIGABYTE Z790 GAMING X DDR5 MOTHERBOARD

UNPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

Outstanding Thermal Design

GIGABYTE Motherboards’ Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

Specifications:
Model Name Z790 GAMING X AX
CPU

LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)
Chipset Intel® Z790 Express Chipset
Memory

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60
* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
