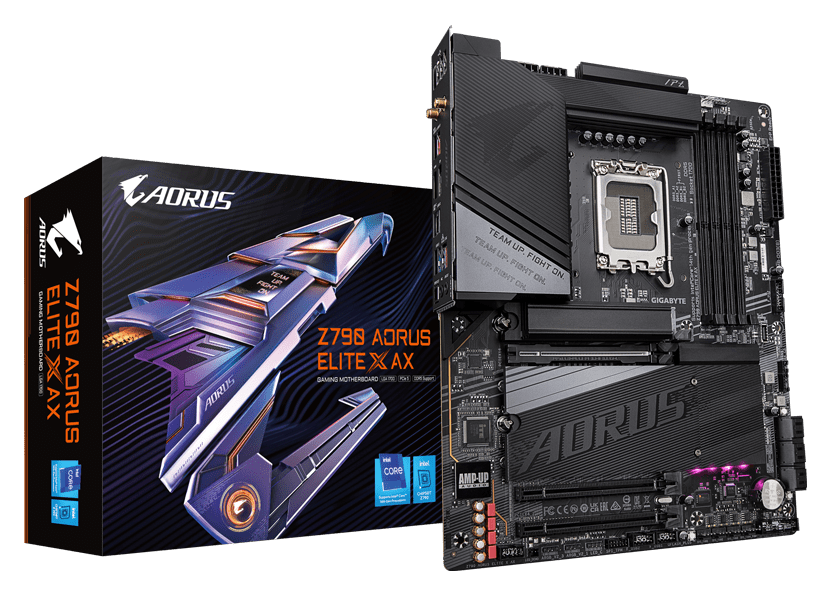

GIGABYTE Z790 AORUS ELITE X AX DDR5 MOTHERBOARD

Original price was: ₹52,500.00.Current price is: ₹25,065.00. ₹29,576.70incl. GST

Key Features

  • Supports Intel® Core™ 14th and 13th processors
  • Digital twin 16+1+2 phases VRM solution
  • Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
  • PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
  • EZ-Latch Click：M.2 heatsinks with screwless design
  • EZ-Latch Plus：M.2 slots with quick release design
  • UC BIOS：User-Centred intuitive UX with Quick Access function
  • Ultra-Fast Storage：4*PCIe 4.0 x4 M.2 slots
  • Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
  • Fast Networking：2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
  • Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
  • Precision Audio：ALC1220 & Audiophile Grade Capacitors

Out of stock

Category:
Wishlist
gigabyte
  • CPU
    LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
    L3 cache varies with CPU

    * Please refer to “CPU Support List” for more information.

  • Chipset
    Intel® Z790 Express Chipset
  • Memory
    Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.

    – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3

    (Graphics specifications may vary depending on CPU support.)

  • Audio
    Realtek® ALC1220-VB CODEC
    * The back panel line out jack supports DSD audio.

    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    Support for S/PDIF Out

  • LAN
    Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
    – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    – BLUETOOTH 5.3
    – Support for 11ax 160MHz wireless standard
    Intel® Wi-Fi 6E AX211 (For PCB rev. 1.1)
    – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    – BLUETOOTH 5.3
    – Support for 11ax 160MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)

Brand

GIGABYTE
