|Form Factor||23.0cm x 21.5cm|
|Number of Memory Slots||2 (DDR4)|
|Maximum Memory Supported||64GB|
|Memory Type Supported||DDR4|
|Channel Supported||Dual Channel|
|Expansion Slots||1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1, 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16|
|Storage Supported||4 x SATA 6Gb/s|
|USB Ports||4 x USB 2.0/1.1 ports, 4 x USB 2.0/1.1 ports on the back panel, 4 x USB 3.2 Gen 1 ports|
|I/O Controller||iTE® I/O Controller Chip|
|Internal I/O Connectors||1 x 24-pin ATX main power connector|
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
|OS Supported||Support for Windows® 11 64-bit, Windows® 10 64-bit|

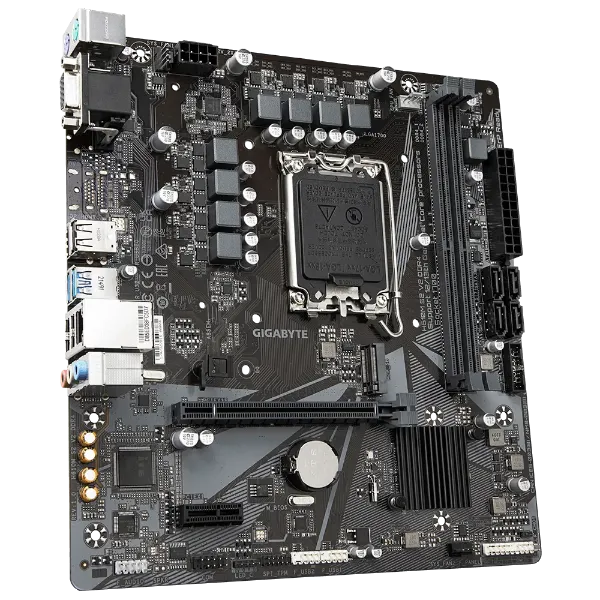

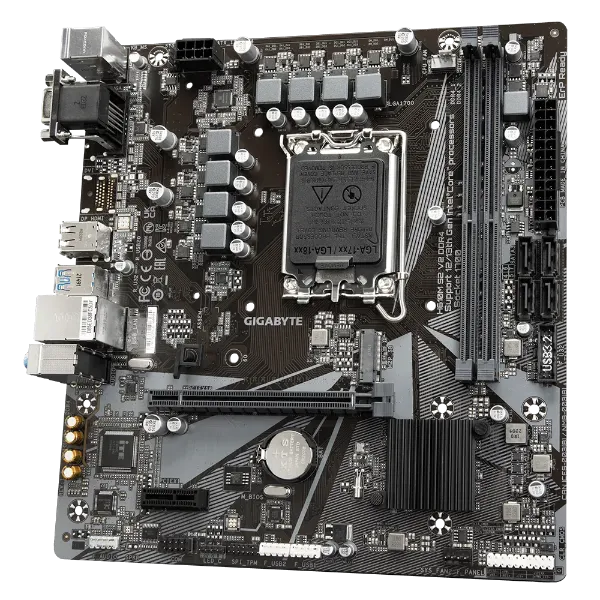

GIGABYTE H610M S2 V2 DDR4 MOTHERBOARD
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.
