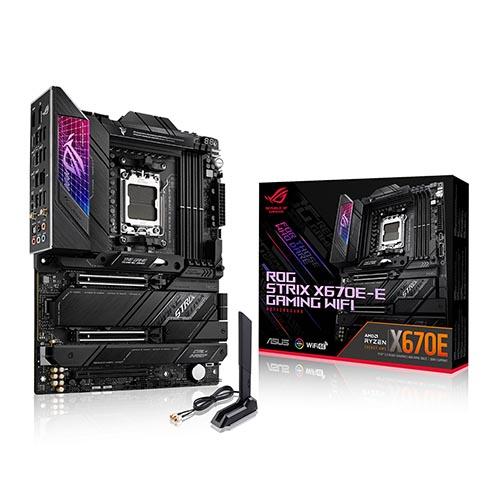

ASUS ROG Strix X670E-E Gaming WIFI Motherboard

42,687.00 50,370.66incl. GST

About this item

  • AMD Socket AM5(LGA 1718) for AMD Ryzen 7000 Series Desktop Processors
  • Intelligent Control: ASUS-exclusive tools including AI Cooling II, Two-Way AI Noise-Cancelation and AI Networking for easy configuration
  • Robust Power Solution: 18 + 2 teamed power stages with 8+8 pin ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Optimized Thermal Design: Large VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, L-shaped heatpipe, M.2 Combo-sink and M.2 backplate for PCIe 5.0 M.2_1 slot, three on board M.2 heatsinks, plus a massive bundled PCIe 5.0 M.2 heatsink as accessory
  • High-Performance Networking: Onboard WiFi 6E, Intel 2.5 Gb Ethernet and ASUS LANGuard.

Out of stock

Category:
Wishlist

Specification

CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.

Chipset AMD X670
Memory 4 x DIMM, Max. 128GB,  DDR5

6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*”

Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO™)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics 1 x DisplayPort**

1 x HDMI® port***

**Supports max. 8K@60Hz as specified in DisplayPort 1.4.

***Supports 4K@60Hz as specified in HDMI 2.1.

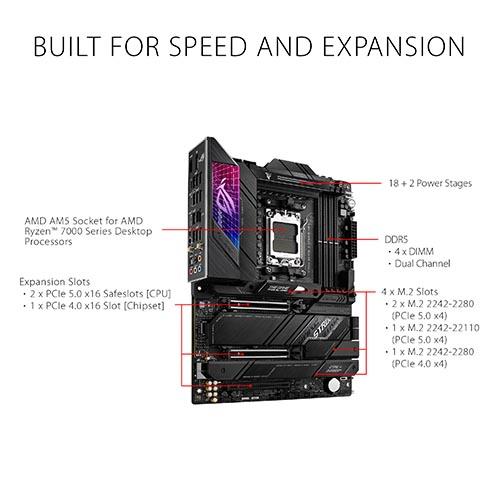

Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors*

2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)

AMD X670 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode))

AMD X670 Chipset

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

LAN 1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth



Wi-Fi 6E

2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2

* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

– Impedance sense for front and rear headphone outputs

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

– Supports up to 32-Bit/384 kHz playback”

Audio Features

– Audio Shielding

– Savitech SV3H712 AMP

-Gold-plated audio jacks

– Rear optical S/PDIF out port

– Premium audio capacitors

– Audio cover

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

USB Rear USB (Total 13 ports)

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

12 x USB 3.2 Gen 2 ports (10 x Type-A + 2 x USB Type-C®)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 2×2  connector

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

Operating System Support Windows® 11 64-bit, Windows 10 64-bit
Special Features Extreme Engine Digi+

– 5K Black Metallic Capacitors

ASUS Q-Design

– M.2 Q-Latch

– PCIe Slot Q-Release

– Q-Code

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink backplate

– M.2 heatsink

– VRM heatsink design

–  Massive Bundled PCIe® 5.0 M.2 Heatsink

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

– Clear CMOS button

– ProCool II

– Pre-mounted I/O shield

– SafeSlot

– SafeDIMM

AURA Sync

– AURA RGB header

– Addressable Gen 2 headers

Software Features

























































ROG Exclusive Software

– GameFirst VI

– ROG CPU-Z

– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

– Sonic Radar III

– DTS® Sound Unbound

– Anti-virus software

ASUS Exclusive Software

Armoury Crate

– AIDA64 Extreme (60 days free trial)

– AURA Creator

– AURA Sync

– Fan Xpert 4 (with AI Cooling II)

– Power Saving

– Two-Way AI Noise Cancellation

AI Suite 3

– TPU

– DIGI+ VRM

– Turbo app

– PC Cleaner

MyAsus

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

Dynamic OC Switcher

FlexKey

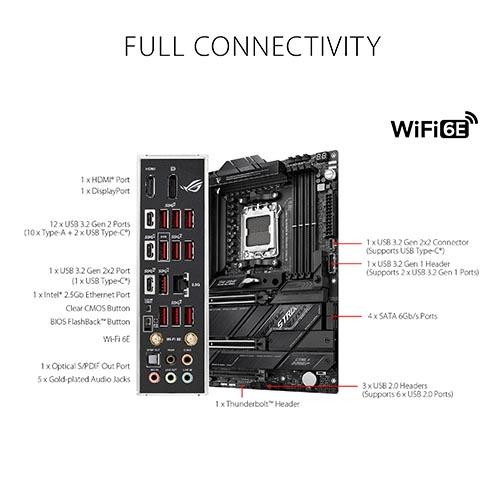

Back I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x Type-C®)

12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x  USB Type-C®)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® I225-V 2.5Gb Ethernet port

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

1 x Clear CMOS button

Internal I/O Ports Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2×2  connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Alteration Mode Switch

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x Start button

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™  header

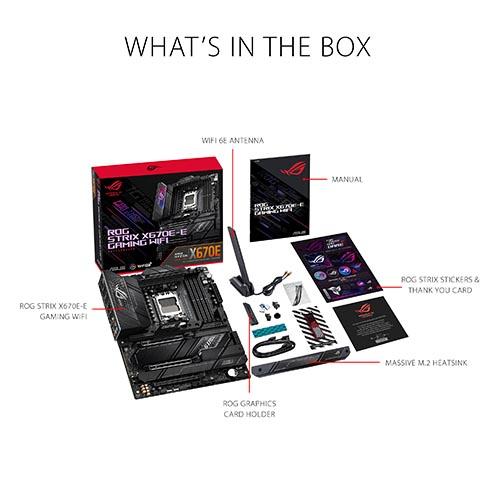

Accessories Cables

2x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x Massive Bundled PCIe® 5.0 M.2 Heatsink

1 x M.2 Q-Latch package for M.2 backplate

1 x M.2 Q-Latch package

1 x ROG Graphics card holder

2 x Rubber Packages for M.2

1 x Rubber Package for M.2 backplate

1 x ROG key chain

1 x ROG Strix sticker

1 x ROG Strix thank you card

Documentation

1 x User guide

BIOS 256 Mb  Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Form Factor ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty 3 Years
Note* Price, feature and specifications are subject to change without notice.
