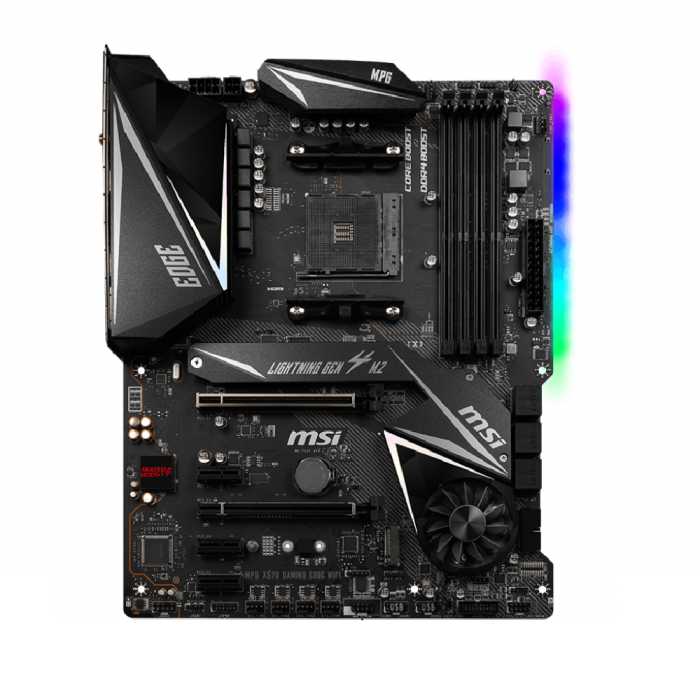

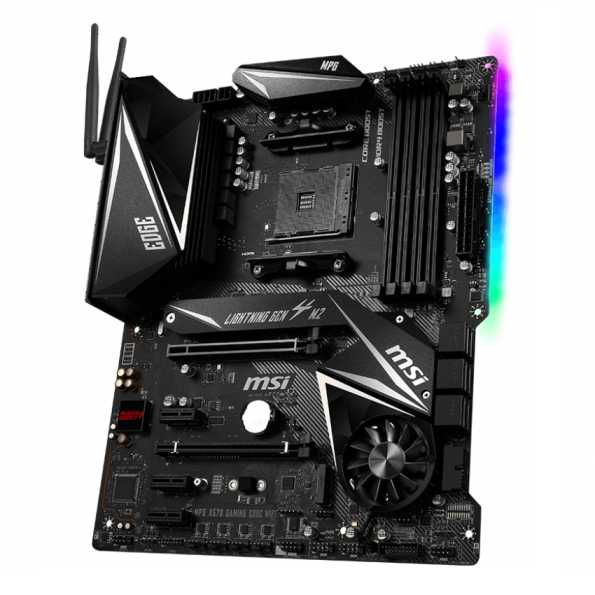

MSI MPG X570 GAMING EDGE WIFI

• 4x DDR4 memory slots, support up to 128GB
  • s3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
  • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

1. Please refer www.msi.com for more information on compatible memory.

• 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
  • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
  • 2nd Gen AMD Ryzen™ support PCIe 3.0 x16 mode
  • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
• 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
• 3x PCIe 3.0 x1 slots

1. PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
2. The speeds may vary for different devices

• 1x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @24Hz

1. Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
2. Maximum shared memory of 2048 MB

• 6x SATA 6Gb/s ports
• 2x M.2 slots (Key M)
  • M2_1 slot (from AMD^® Processor)
    – Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
    – Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
    – Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from AMD^® X570 Chipset)
    – Supports PCIe 3.0 x4 and SATA 6Gb/s
    – Supports 2242/ 2260/ 2280 storage devices

AMD^® X570 Chipset

• 2x USB 3.2 Gen 2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
• 4x USB 3.2 Gen 1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
• 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD^® Processor

• 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
• 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

• 7.1-Channel High Definition Audio
• Supports Optical S/PDIF output

• Supports 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps
• Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
• The Wireless module is pre-install in the M2_3 (Key-E) slot

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump connector
• 4x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x TPM module connector
• 1x Serial port connector
• 1x Clear CMOS jumper
• 1x Chassis Intrusion connector
• 2x 4-pin RGB LED connectors
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LEDs

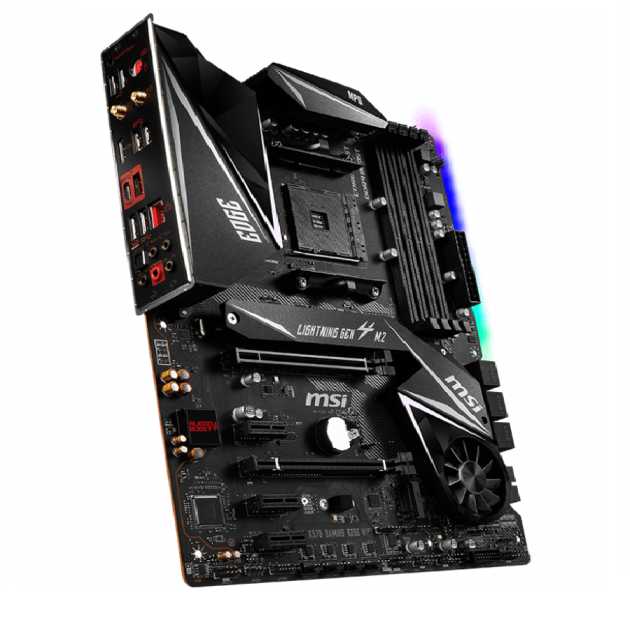

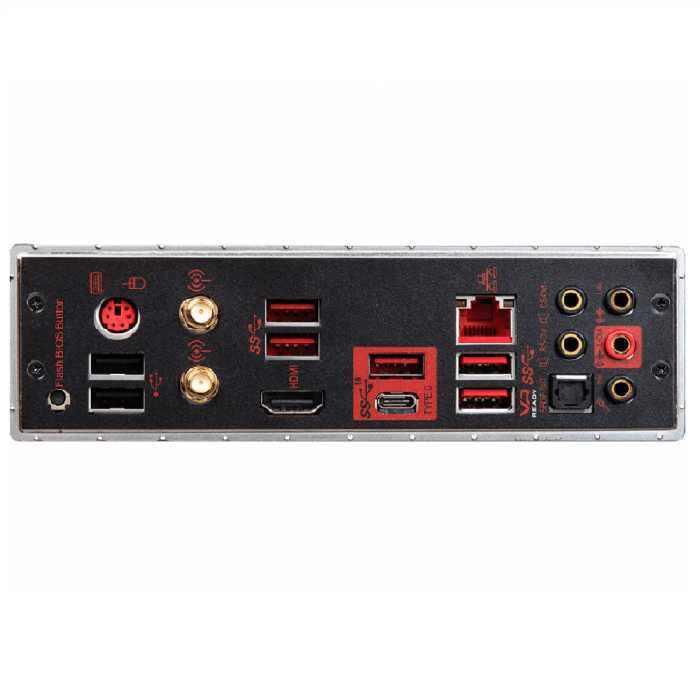

• Keyboard / Mouse
• Wireless / Bluetooth
• USB 3.2 Gen1 Type-A
• LAN
• Audio Connectors
• Flash BIOS Button
• USB 2.0
• HDMI
• USB 3.2 Gen2 Type-A + C
• USB 3.2 Gen2 Type-A
• Optical S/PDIF out
