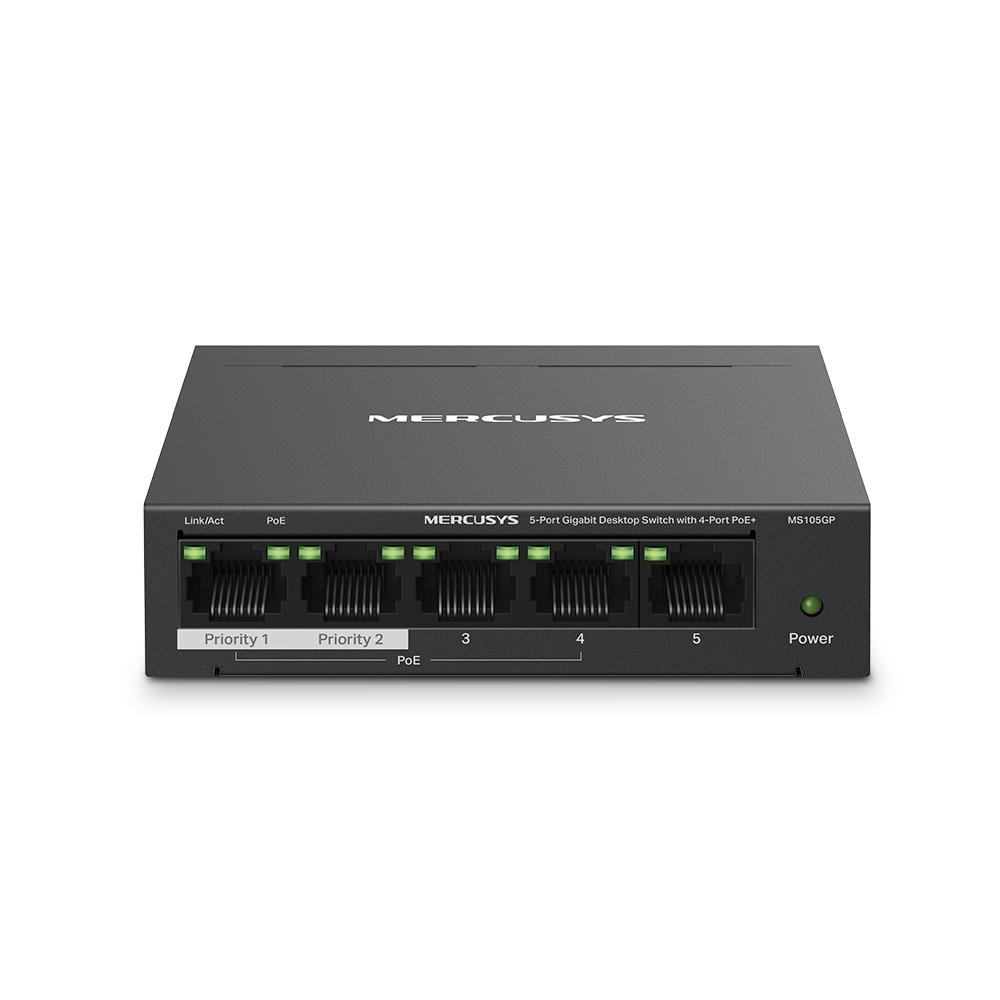

Mercusys MS105GP 5 Ports 10/100/1000 Mbps Desktop Network Switch

1,650.00 1,947.00incl. GST

  • Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports
  • Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
  • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
  • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
  • Isolation Mode: One click to divide traffic for specific ports for stability and security
  • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
  • Durable Metal Casing: Allows for efficient heat dissipation and long network life
  • Plug and Play: Simple to use and saves time and effort

Availability: 15 in stock

Category:
Wishlist

Specification

Dimensions

99.8*98*25mm

PoE Ports

RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W

Interfaces

5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

External Power Adapter (Output: 53.5V/1.31A)

Installation

Desktop

Wall Mount

Standards and Protocols

IEEE 802.3x Flow Control

Data Rates

10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex

Jumbo Frame

9 KB

Mac Address Table

2K

Max Power Consumption

3.13W(220 V / 50 Hz, no PD connected)

75.15W(220 V / 50 Hz, with 65W PD connected)

Max Heat Dissipation

10.64 BTH/h (no PD connected)

255.51 BTH/h(with 65W PD connected)



Brand

Mercusys
